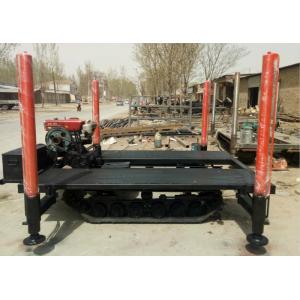

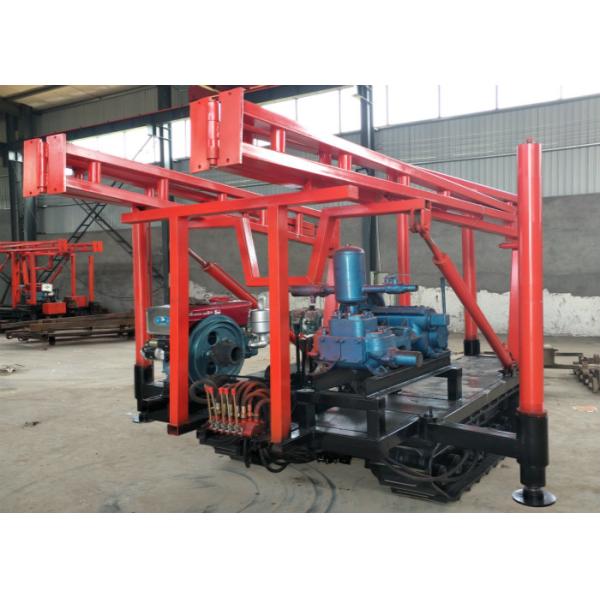

Technical Specifications

Drill

Drilling depth 100/180 m

Initial hole dia. 150mm

Final hole dia. 75/46mm

Drill rod dia. 42/43mm

Angle range 90°-75°

Dimensions(L×W×H) 1433 × 697 × 1274(mm)

Weight(without power unit) 420kg

Migration distance 350mm

Swivel Head

Spindle speed(5-speed) 1010/790/470/295/140r/min

Spindle stroke 450mm

Upward displacement speed of idling vertical spindle 3m/min

Downward displacement speed of idling vertical spindle 4m/min

Spindle pull-down max 15KN

Spindle lifting capacity max 25KN

Hoist

Max .lifting capacity(single rope) 11KN

Lifting rotating speed 121/76/36r/min

Hoisting drum linear velocity (two levels) 1.05/0.66/0.31 m/s

Drum dia. 140mm

Wire rope dia. 9.3mm

Wire rope capability 35m

Brake dia. 252mm

Brake belt width 50mm

Oil Pump

Model YBC-12/80

Rated pressure 8Mpa

Displacement 8ml/r

Rated speed 1500r/min

Power (diesel engine or motor)

Model (diesel engine) ES1100

Rated power 12.1 KW

Rated speed 2200r/min

Model (motor) Y160M-4

Rated power 11KW

Rated speed 1460r/min

Jinzhou City Shitan Machinery Equipment CO. LTD.  is a professional production and

processing company for core drilling rigs, crawler drilling rigs, various track chassis, various

types of mud pumps, various track transport vehicles, etc. It is one of the outstanding

manufacturers of similar products in North China. Strong technical force. The modern productiona

equipment and complete testing means are specialized in the development, manufacture and

marketing of drilling rigs.

To ensure the quality and stability of the machine, we use the most advanced production and testing

equipment, Made from high quality materials, with fashion and compact design, that keeps our drilling

rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive

cost performance. Our water drilling rigs have received the real market validation as the majority of our

customer’s positive feedback.

The company's main products are rigs: XY-1, XY-1A, XY-1B, GK-180, GK-200, DPP-100 and other series

of drilling rigs: gearbox assemblies and gyro assemblies for various rigs, Winch assembly, reducer assembly,

pump assembly. Drilling tools: sedimentary pipe joints, casing joints, casing couplings, drill pipe joints, casing

core pipes, lifters, automatic drop hammers, earth borrowers, standard penetrations, forks, lock joints, alloy drill

bits Hundreds of drilling tools, such as steel sand drill bits, core pipe joints, drill pipe pliers, and casing pliers.

Jinzhou City Shitan Mechinery Equipment CO. LTD. has a complete and scientific quality management

system. The integrity, strength and product quality of Jinzhou Stone Exploration Machinery Co., Ltd. have been

recognized by the industry. Welcome friends from all walks of life come to visit, guide and negotiate business!
