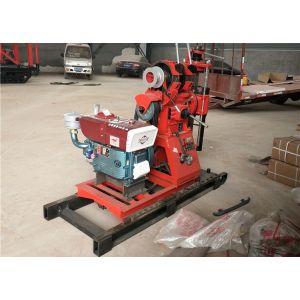

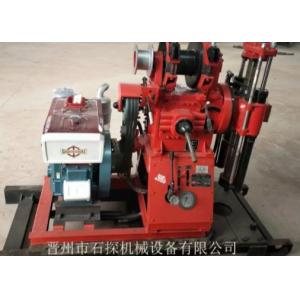

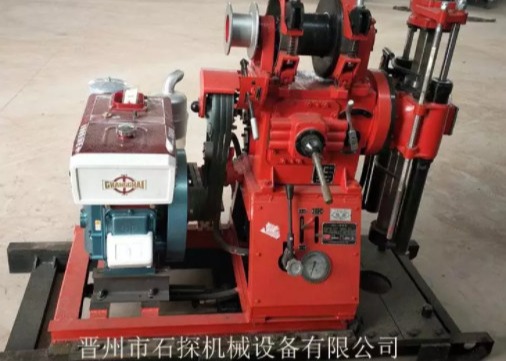

The main features are as follows:

1. The rig has high input power, high output torque and strong drilling ability.
2. The high output speed of the drilling rig is mainly suitable for diamond core drilling and engineering geological investigation.
3. The drilling rig is equipped with a rotator, and the body is an integral casting, which improves the structural strength.
4. It is equipped with hydraulic feeding mechanism and hydraulic chuck clamping mechanism at the upper end of vertical shaft to improve drilling efficiency and reduce labor intensity.
5. In order to extend the life of the power head, the hydraulic control of the power head is used to move back to make the frame move away from the orifice.
6. The drilling rig is equipped with active drill pipe, which has high drilling efficiency, safety and reliability.
7. The rig adopts double disc normally closed friction clutch with flexible opening and closing and convenient operation and adjustment.
8. The gearbox of drilling rig adopts automobile gearbox structure, single handlebar transmission and interlock mechanism, so it is easy to operate.
9. If the drill is separated from the water pump and the water pump and the drill is separately equipped with power, the output torque of the drill can be improved, especially when entering deep hole drilling, the power will not drop, which will cause the contradiction of the water pump and avoid accidents in the hole.
10. The drilling rig is compact in structure, small in volume and light in weight, with the largest part less than 100kg, which is convenient for disassembly and handling, and is suitable for working in hilly or mountainous areas.
11. It can be equipped with large hole vibrator and control system according to the need to improve the ability of handling accidents.
12. The rig is equipped with a 7.0m light pipe drill tower with simple structure and convenient installation and displacement.
