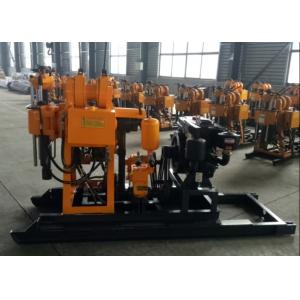

100m Geothermal Oem Core Drilling Rig Machine

Ask Lasest Price
Brand Name :	ShiTan
Model Number :	XY-1
Certification :	ISO9001
Price :	Negotiation
Payment Terms :	L/C, D/A, T/T, Western Union
Supply Ability :	2000set/year
Delivery Time :	Within 7-12 days

Add to Cart

Product Details
Company Profile

100m Geothermal Oem Core Drilling Rig Machine

100m Small Portable Water Well Drilling Rig Geothermal Core Drilling Machine Agricultural Irrigation Equipment

Application of XY-1 small water well drilling rig

XY-1 small drill rig widely used in drilling family wells, drilling industry wells and drilling survey geological sampling, SPT service etc. Drilling dia. will from 50-200mm or large, according to clients requirement, it can drill max. 100m deep. Different layer condition will need different bits, soil or soft layer will need clay bit, or ally bit, drag bit, for hard rock will need diamond bit, tricone bit etc.

Specifications of XY-1 small water well drilling rig


Drilling depth		100m
Drill rod dia.		42mm
Initial hole dia.		110mm
Final hole dia.		75mm
Angle range		90°-75°
Dimensions(L×W×H)		1640×1030×1440 (mm)
Weight(without power unit)		500kg
Swivel Head
Spindle speed(3-speed)		142/285/570 r/min
Spindle stroke		450mm
upward displacement speed of idling vertical spindle		0.05m/s
Downward displacement speed of idling vertical spindle		0.067m/s
Spindle pull-down max		15KN
Spindle lifting capacity max		25KN
Hoist
Max .lifting capacity(1-speed,single rope)		10KN
Cable volume (number) of hoisting drum		27m
Wire rope dia.		9.3mm
Mud Pump
Model		Horizontal reciprocating single-acting piston pump
Displacement max
Equipped with diesel engine		95L/min
Equipped with motor		77L/mm
Allowable working pressure max		1.2Mpa
Continuous working pressure		0.7Mpa
Suction pipe dia		32mm
Discharge pipe dia		25mm

Main Features:

1. Very powerful at soil, sand, hard rock, etc. land condition.

2. Three kinds drill bits (three-wing bit, alloy bit and diamond bit) available for your choice, which can drill

both soft and hard ground, especially diamond drill bit effective in drilling hard rocks.

3. Hydraulic control system for greatly improving the working efficiency, saving labor force.

4. Mounted wheel or trailer, can be hauled easily by car or tractor, convenient to transport.

5. Power can be diesel engine or electric motor, as per your request.

Tips to select a right drilling rig:

1. What kind of projects you will work for?

Water well, Borehole, Exploration coring, Foundation Piling, Blast holes, Geothermal heat project or others?

2. Max drilling depth you want.

100m, 150m, 200m, 300m, or other depth.

3. The Min and Max borehole diameter you need.

Like Max 200mm, Min 75mm.

4. Geological condition of the working site if you know about it.

Soft ground like soil, mud, sand

Hard ground like hard rocks

Or mixed
