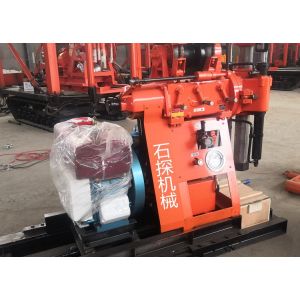

Xy-1 Wagon Drilling Machine For Construction Engineering Drilling

Ask Lasest Price
Brand Name :	ShiTan
Model Number :	XY-1
Certification :	ISO9001
Price :	Negotiation
Payment Terms :	L/C,D/A,T/T,Western Union
Supply Ability :	2000set/year
Delivery Time :	Within 7-12 days

Add to Cart

Product Details
Company Profile

Xy-1 Wagon Drilling Machine For Construction Engineering Drilling

Applications of Water Well Drilling Rig

Y-1 Core drilling rig is suited for the applications of general exploration and investigation, geophysical prospecting. Road and construction survey, blast holes and other drilling operations.
With hydraulic automatic feeding device. Elevated drilling efficiency.
The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown.
Centralized handle, easy operation, safe and reliable.
The drilling machine,pump and diesel engine are installed on a common base frame in order to have a compact structure and occupy small field area.

Water Well Drilling Rig technical parameter

Drilling Rig
Drilling diameter(mm)	110
Drilling depth (m)	100
Drill pipe diameter (mm)	42
Drilling angle(°)	90~75
Equipment size(L * B * H)	1640* 1030 * 1440 (mm)
Rig weight (except engine)	500
Gyrator
Spindle speed (four gear) (r/min)	142,285,570
Spindle travel(mm)	450
Spindle no-load lifting maximum moving speed(m/s)	0.05
Spindle no load drop maximum movement speed(m/s)	0.067
Spindle maximum feed pressure(KN)	15
Spindle maximum lifting force(KN)	25
Spindle maximum output torque(KN• m)	0.5
Winch assembly
Winch maximum lifting force (single rope)(KN)	10
Reel speed (r/min)	55,110,220
Reel circumferential speed(m/s)	0.42,0.84 ,1.68
Reel diameter(mm)	145
Wire rope diameter(mm)	9.3
Wire rope density (m)	27
Brake diameter(mm)	230
Brake band width (mm)	50
Water pump
Pump type	Horizontal single cylinder double acting
Maximum displacement (motor)(L/min)	95(77)
Work pressure (Mpa)	0.7
Cylinder diameter (mm)	80
Piston stroke(mm)	100
The maximum allowable pressure (Mpa)	1.2
Oil pump
Oil pump type	Gear pump
Nominal pressure (Mpa)	12.5
Rated flow(ml/r)	20
Rated speed(r/min)	800-2500
Diesel engine or motor
Diesel engine	ZS1100
Rated power (KW)	12.1
Rated speed (r/min)	2200
Rated pressure(Mpa)	11
Motor type	Y160M - 4

Second, the main features:

1. With automatic feeding into the body, high drilling efficiency.
2. The use of the ball card clamping mechanism instead of chuck, can be implemented without down the bar.
3. Handle centralized, easy to operate, safe and reliable.
4. Compact structure, rig, pumps and diesel engines are installed in the same chassis, the occupation of small venues.
5. Light weight, strong decomposition, easy to move, suitable for plain and mountain work.

After sales service:

-Technical training for new machines.

-On site service available for quality problem.

-Timely reminding for machine maintenance.

-Construction solutions will be provided for different geological conditions.

-Remind you of the wearing parts.

-7*24 hours reply to your questions.

Parts:

Hardrock suggests our customers using the original factory’s spare parts which are designed and dimensioned for best performance.

Warranty:

Hardrock provides standard one year warranty to main machines, and customers are offered to an extended service of 3 or 5 years warranty coverage.
