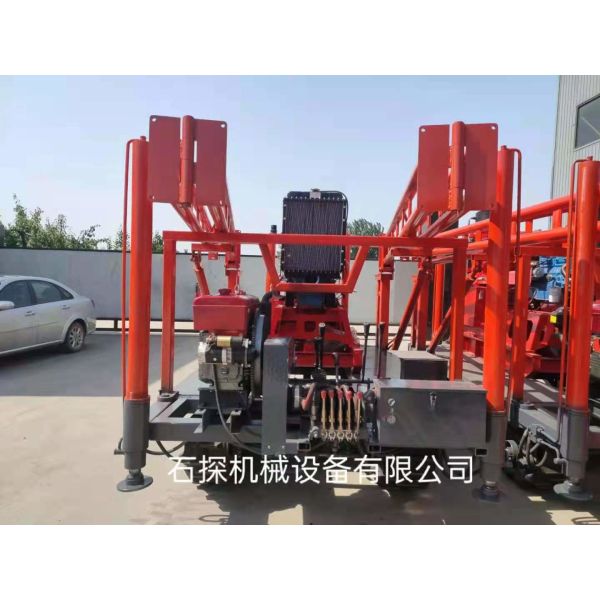

Rotary 380V Hydraulic Drilling Rig Water Pump Soil Test Spt Machine Xy-1a

Description of water well drilling machine:

In the steering and braking structure, single axle steering brake replaces the original the double axle gear brake, which greatly reduces the attrition degree of wear parts.

Using wet friction brake is more reliable. The hydraulic transmission tower lifting device is safe and convenient to go up and down and easy to move the whole operation.

Also it can be modified according to the customer's reasonable requirements

Water Well Drill Rig​ parameters

Purpose and application

1. Mainly used for drilling holes for the general survey and exploration of solid mineral deposits and engineering geological
surveys, and inspection holes for various concrete structures.
2. Drill bits such as diamond, alloy, and steel particles can be used for drilling according to different formations.
3. When the final hole diameter is 75mm and 46mm, the rated drilling depth is 100m and 180m, respectively.
It shall not exceed 110% of each drilling depth, the rated opening diameter is 110mm, and the large opening diameter is allowed to
be 150mm.

.

Advantages:

1 The four feet are hydraulic support legs. Each one is controlled alone which make the platform is fixed on the ground smoothly.

2 The maximum load of the platform is 4500kg and can load XY-2 drilling rig furthest. The size of the platform is reasonable.

3 The chassis adopts rubber track, which has the advantages of lighter weight, lower life-cycle costs, and less vehicle running gear noise, less vehicle vibration, less fuel consumption. It does not hurt the pavement in the city roads.

Jinzhou City Shitan Machinery Equipment CO. LTD.  is a professional production and

processing company for core drilling rigs, crawler drilling rigs, various track chassis, various

types of mud pumps, various track transport vehicles, etc. It is one of the outstanding

manufacturers of similar products in North China. Strong technical force. The modern productiona

equipment and complete testing means are specialized in the development, manufacture and

marketing of drilling rigs.

To ensure the quality and stability of the machine, we use the most advanced production and testing

equipment, Made from high quality materials, with fashion and compact design, that keeps our drilling

rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive

cost performance. Our water drilling rigs have received the real market validation as the majority of our

customer’s positive feedback.

The company's main products are rigs: XY-1, XY-1A, XY-1B, GK-180, GK-200, DPP-100 and other series

of drilling rigs: gearbox assemblies and gyro assemblies for various rigs, Winch assembly, reducer assembly,

pump assembly. Drilling tools: sedimentary pipe joints, casing joints, casing couplings, drill pipe joints, casing

core pipes, lifters, automatic drop hammers, earth borrowers, standard penetrations, forks, lock joints, alloy drill

bits Hundreds of drilling tools, such as steel sand drill bits, core pipe joints, drill pipe pliers, and casing pliers.

Jinzhou City Shitan Mechinery Equipment CO. LTD. has a complete and scientific quality management

system. The integrity, strength and product quality of Jinzhou Stone Exploration Machinery Co., Ltd. have been

recognized by the industry. Welcome friends from all walks of life come to visit, guide and negotiate business!
